Touchscreen Executive Phone

The TXP is a touchscreen-driven telephone that allows the user access to all Raytheon digital switch resources from a single instrument. This consolidation, when combined with the TXP’s simplified user interface, eliminates the need for the user to have to remember the particular operational nuances of multiple communication devices. A built-in speakerphone allows for hands-free operation.

The TXP serves as the user interface to Raytheon digital switching systems and is designed to connect to switches of the Secure Digital Switch family via the Quad Telephone Interface and to switches of the Digital Small Switch family via the Summing Telephone Interface or Dual Narrowband Interface with an Octal UDLT interface daughterboard. The TXP is supported through the multiple subscriber adapters, such as the MDA or the UMUX-III. The TXP can be configured with a companion unit (the TLE) that provides additional line keys for the TXP.

Features

  • Multimedia secure/nonsecure access
  • Unlimited conferencing
  • Secure/nonsecure access to various networks and radios
  • Multicryptographic access
  • Authenticated MLS voice capability
  • DTMF dial pad is 4-by-4 with MLPP
  • PTT handset
  • Auxiliary port for handset, headset, or recorder
  • Alarm, automatic extension lockout, automatic security authentication and caller ID
  • Noise-canceling microphone
  • TEMPEST qualified
  • Speakerphone
  • Indicator lights for ringing, off-hook, and TBD
  • Changeable 1.75" diameter organization seal

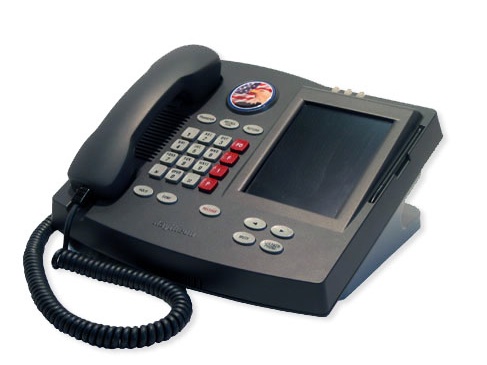

TXP telephone



Product Revision
Raytheon P/N 01-01850-002
Telecore P/N 2AA-01300-0007
Latest Revision 2AA-01351-0900
Distribution TXP Webfile_0007 Prd Rls_0300 Md Ctrl Doc_Sftwr 0900.zip

Click to download a pdf version of this information: TXP
